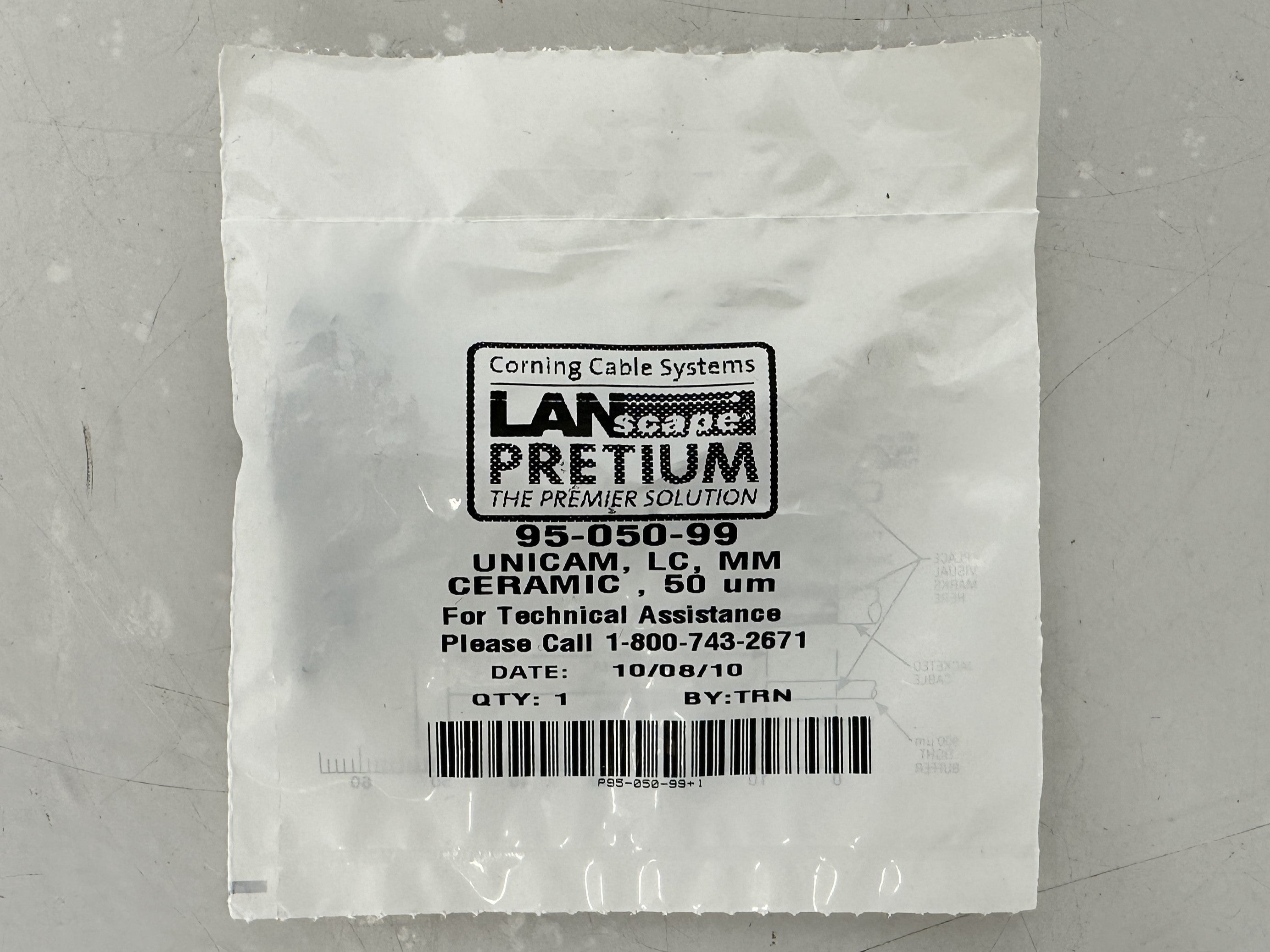

Coring UniCam 95-050-99 High Performance OM/OM4 LC Connector

Item Details:

• Brand: Corning
• Model: 95-050-99 LC Connector

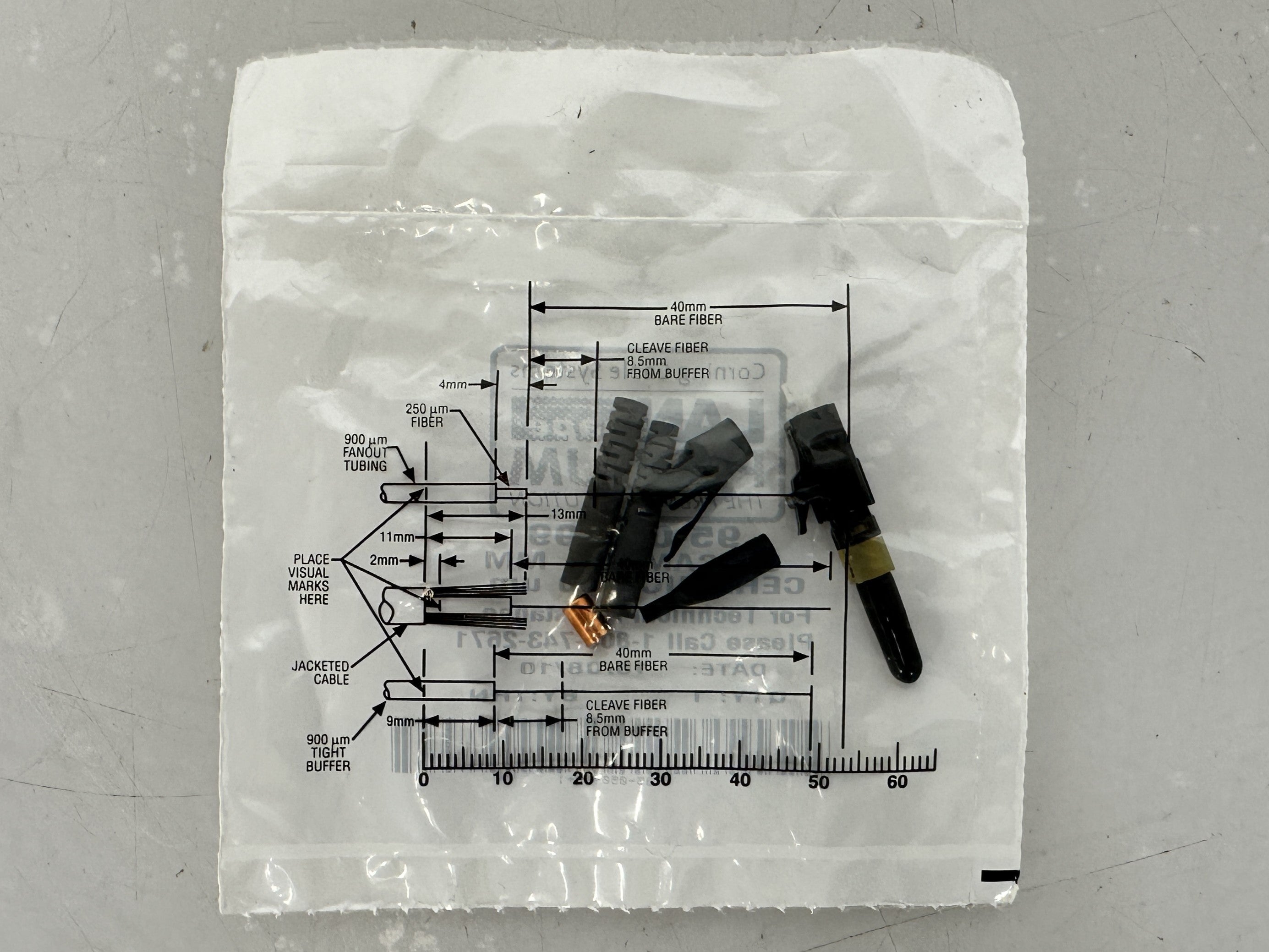

• Super easy installation: just strip, clean, cleave, cam, and crimp.
• Perfectly designed for OM3/OM4 multimode fiber optics.
• Comes with a black housing and an aqua boot.
• Exceptional network performance with 0.1 dB typical/0.5 dB maximum insertion loss per connector pair.
• Install an LC connector in just about 45 - 50 seconds using the UniCam Pretium Tool Kit.
• High - precision ceramic ferrule multimode connectors.
• Intermateability: FOCIS compliant with TIA/EIA 604 - 10A (LC)
• Passed EIA/TIA 568 - B.3 qualification.
• Great durability: only 0.2 dB change after 500 rematings (FOTP - 21).
• Tensile strength: 10 lb ≤ 0.2 dB change on jacketed cable; 0.5 lb ≤ 0.2 dB change on 900 μm cable (FOTP - 6)
• Wide operating temperature range from -40º to +75ºC, exceeding EIA/TIA 568 - B.3

Dimensions:

• 4' Width
• 4' Depth
• .5' Height

Condition:

• The item is new in its original packaging.
• It may have some wear due to time and storage.

Using this Corning UniCam LC connector is a breeze. First, you'll want to strip, clean, and cleave the fiber. Then use the cam and crimp steps, which are super easy. With the UniCam Pretium Tool Kit, you can finish the installation in about 45 - 50 seconds. When it comes to operating this connector, keep in mind that it can work in a wide temperature range from -40º to +75ºC. But avoid using it in extremely humid or dusty environments as it may affect its performance. For maintenance, regularly check for any signs of wear on the black housing and aqua boot. If you notice any significant changes in the insertion loss or other performance indicators, it might be time to replace the connector. Also, when handling the connector, be gentle to prevent any damage to the high - precision ceramic ferrule.
